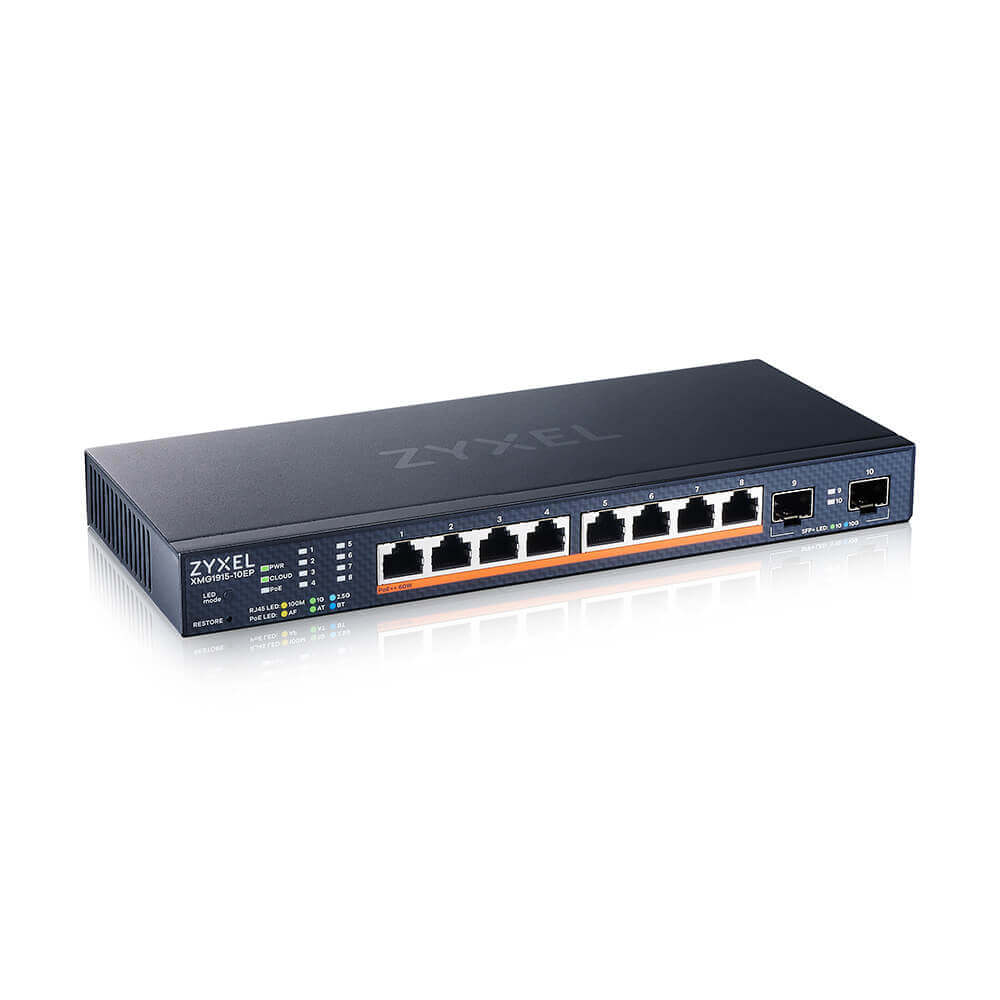

ZyXEL XMG1915-10EP

ZyXEL XMG1915 -10EP
Availability: Currently Shipping

Manuf (OEM/ODM): Delta Networks

(Est.) release date: March 2024
(Est.) initial retail price (in USD): $300
UPC: 760559130312 (UPC DB, On eBay)
EAN: 4718937631476 (UPC DB, On eBay)
Country of manuf.: China
Series: XMG1915

Amazon image

ASIN
B0CYLSF7CV (, On Amazon, On CCC)
On Newegg

PCB ID: 2976994402

Power: 54 VDC, 2.77 A
Connector type: barrel
Conn. measurements: 5.5 mm (OD), 2.5 mm (ID), 9.5 mm (LEN)

CPU1: Realtek RTL9302C (800 MHz)
CPU2: Nuvoton NUC029ZAN (50 MHz)
FLA1: 32 MiB33,554,432 B <br />262,144 Kib <br />32,768 KiB <br />256 Mib <br />0.0313 GiB <br /> (Macronix MX25L25645GM2I-08G)
FLA2: 64 KiB 0.0625 MiB <br />65,536 B <br />512 Kib <br />0.5 Mib <br />6.103516e-5 GiB <br /> (Nuvoton NUC029ZAN)
RAM1: 256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br /> (Winbond W632GU6NB-11)
RAM2: 4 KiB 0.00391 MiB <br />4,096 B <br />32 Kib <br />0.0313 Mib <br />3.814697e-6 GiB <br /> (Nuvoton NUC029ZAN)

ETH chip1: Realtek RTL9302C
ETH chip2: Realtek RTL8224
ETH chip3: Realtek RTL8224

Switch chip1: Realtek RTL9302C

ETH ports: 8
ETH conn. type: 8P8C

ETH speed: 2.5GbE

---

Expansion IFs: SFP+
SFP ports: 2

---

JTAG: yes, 14-pin header, unpopulated, J2
Serial: yes, 4-pin header, populated, 3.3V TTL, (115200 8N1), J5

---

Switch class: smart
has Auto-MDIX capability

Additional chips
Serial GPIO/LED Display Controller;Realtek;RTL8231;;1;
4-port 802.3bt-Compliant PSE Controller;Realtek;RTL8239;;2;
80V 0.8A Synchronous Step-Down Converter;MPS;MP4541;;1;
High-Efficiency Flyback/Forward Controller;MPS;MP6005;;1;
5A Trench Schottky Barrier Rectifier;Diodes;SDT5H100LP5;;2;
150V N-Channel MOSFET;Alpha & Omega (Α&Ω);AON6250;;1;
Low-Power Bidirectional I2C Isolator;TI;ISO1541;;1;
Phototransistor Photocoupler;Everlight;EL3H7;;2;

Flags: Smart switch, PoE+ Switch, LACP, SNMP, MSTP, RSTP, heatsink, metal case

Ethernet OUI: F4:4D:5C

8-Port 2.5GbE Smart Managed PoE++ Switch

with 2 SFP+ Uplink

Product page

• PCB ID: 2976994402 (OEM: Delta Networks)

Specifications

• Processor: Realtek RTL9302C Multi-Layer Managed Switch

Controller with Embedded MIPS 34Kc @800MHz

Co-processor: Nuvoton NUC029ZAN to manage PoE

• Flash/RAM: 32MB (SPI NOR) Flash, 256MB (DDR3) RAM
• Ethernet: 8x 2.5GbE w/ 802.3bt PoE ports, 2x SFP+ (10GbE) slots
• Switching Capacity: 80Gbps; Switching Forwarding Rate: 59.5Mpps

Models

XMG1915 Series

• ZyXEL XMG1915-10E
• ZyXEL XMG1915-10EP
• ZyXEL XMG1915-18EP
