WikiDevi.Wi-Cat.RU:JTAG/JTAG Pinouts
ASUS RT-N56U
- UART
ASUS RT-N16

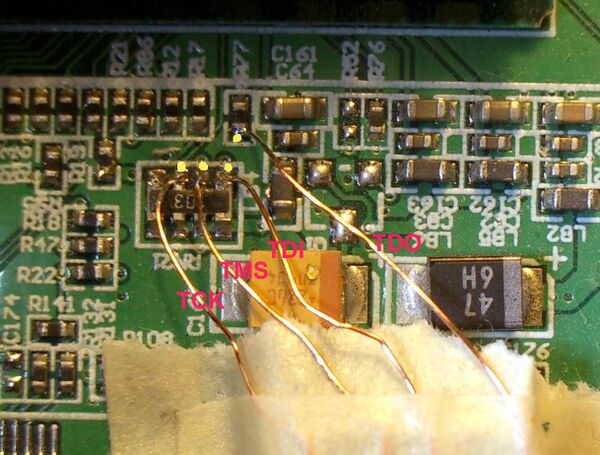

ASUS WL-500g Deluxe
Airlink101 AR430W
- Airlink AR430W
The router follows the MIPS 2.6 EJTAG Specification and has the same PIN information.
- But on the board the PINS are layed out as
1 2 3 4 5 6 7 14 13 12 11 10 9 8 1 - nTRST 3 - TDI 5 - TDO 7 - TMS 9 - TCK
- 2, 4, 6, 8, 10 - GND [you only need one GND for JTAG]
- You dont need the following pins
11 - nSRST 12 - NC 13 - NC 14 - VCC
Airlink101 AP431W
- Same as DWL-2100AP/2200AP - See below
Belkin F5D7230-4 v1
- Belkin F5D7230 v1000
To flash use latest wrt54g v4.8, with these parameters: /fc:29 /nocwd /nobreak /noreset
- watch out for RA11 (under the minipci)
Belkin F5D7231-4 v1 (v12xx)
- Belkin F5D7231-4 v1212
Buffalo WBR-G54
jtag is pins 1-12 (normal jtag pinout: 3: TDI, 5: TDO, 7: TMS, 9: TCK)
| |mini-pci card | |_______________ | 2 12 JP1 | o o o o o o |o o| | o o o o o o |o o| | 1 11 JP2
Openwrt Wiki:OpenWrtDocs/Hardware/Buffalo/WBR-G54 - WBR-G54 JTAG Info
Buffalo WLA-G54
Buffalo WLA-G54C

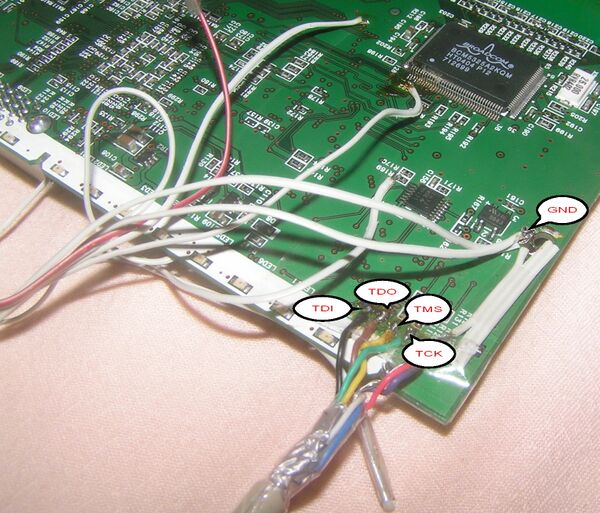

Buffalo WVR-G54-NF

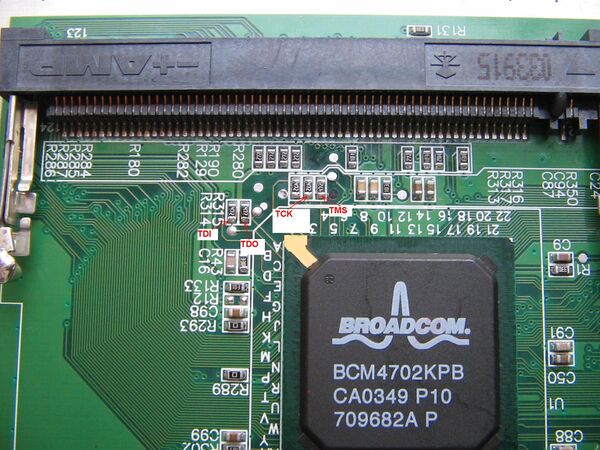

Dell TrueMobile 2300 v1 (WX-5565D)
- Dell Truemobile 2300 v1
D-Link DWL-2100AP/2200AP
(Also Airlink111 AP321W)
Pin 1 to pin 14 Pin 3 TDI Pin 5 TDO Pin 7 TMS Pin 9 TCK Pin 6 GND
Fonera FON2200
- Fonera 2200A

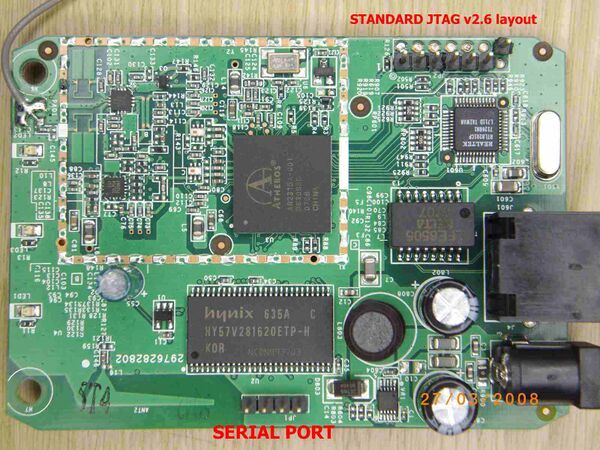

The board:

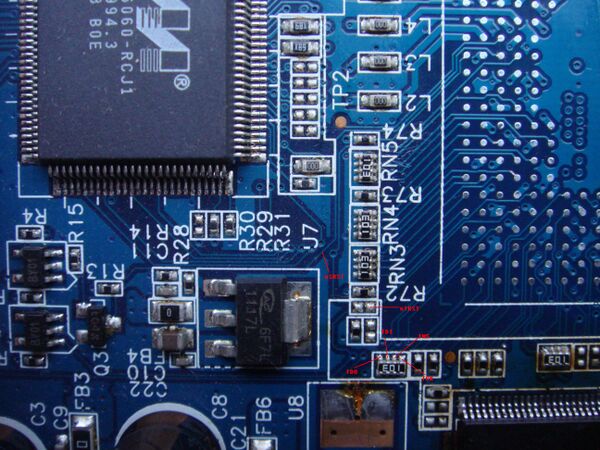

Linksys WRT300N v2

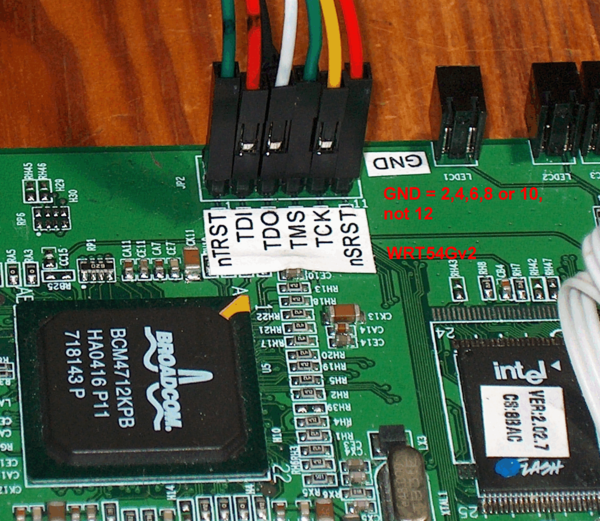

Linksys WRT54G v2
Motorola WE800G v1

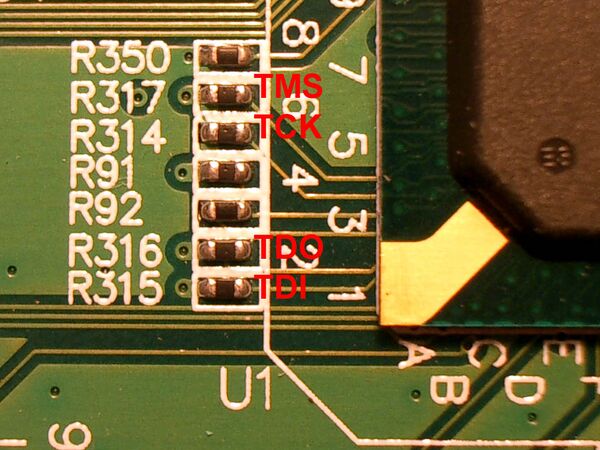

Motorola WR850G v1
Parallel port - TJTAG 3.0.2 - /cable:wiggler
To get the Universal JTAG board, read DD-WRT forums thread
Philips SNB6500/00 (v1)
- Arcadyan WG4005E-B7 (EU)
Board before MOD:
Preparation: 1st step
Preparation: 1st step

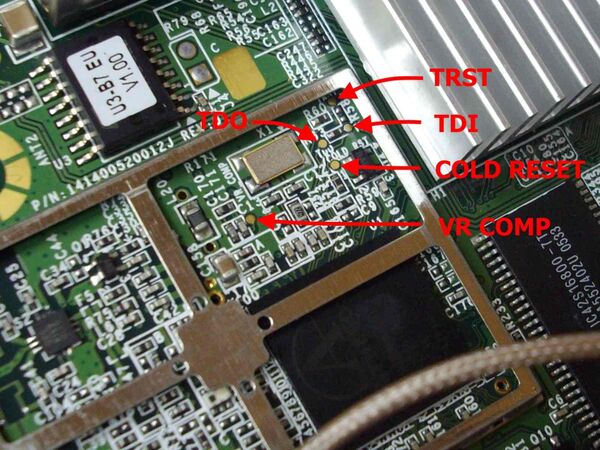

First group of pads:

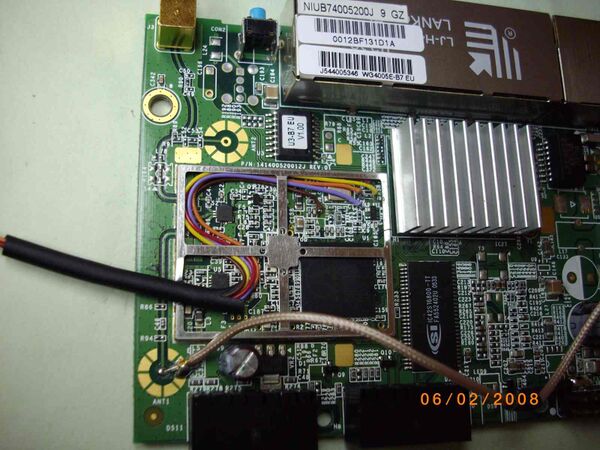

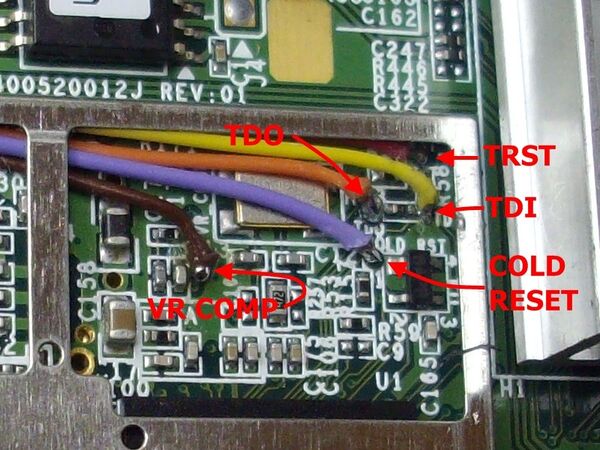

Wires connected:
Wires flow:
Hidden connections:

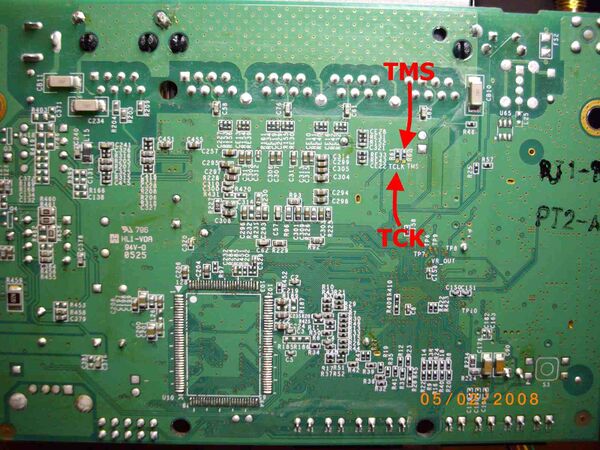

Second group of pads:
Wires connected:

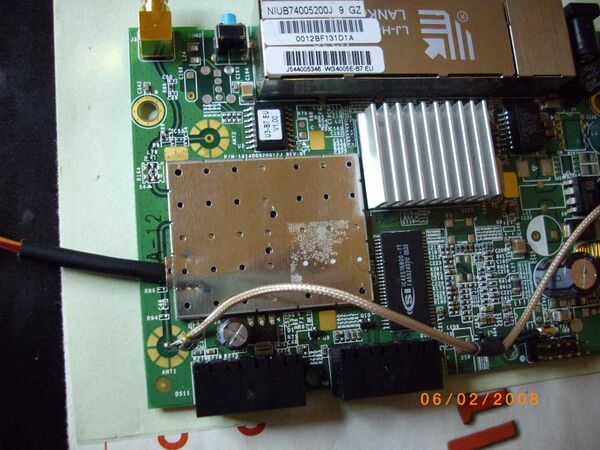

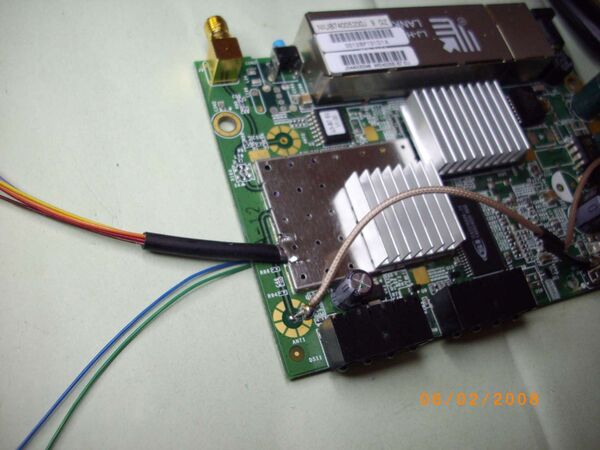

Final look:
Siemens Gigaset SE505 v1
Siemens Gigaset SE505 v2
You will find round Labels on the flash chip with 01, 02, 03
Nice German HowTo: JTAG for SE505 v2
I updated the jtagspi with a 8MB Winbond flash and added information
- if you have to fix the code to match your JTAG hardware jtagspi.tgz with my modifications
