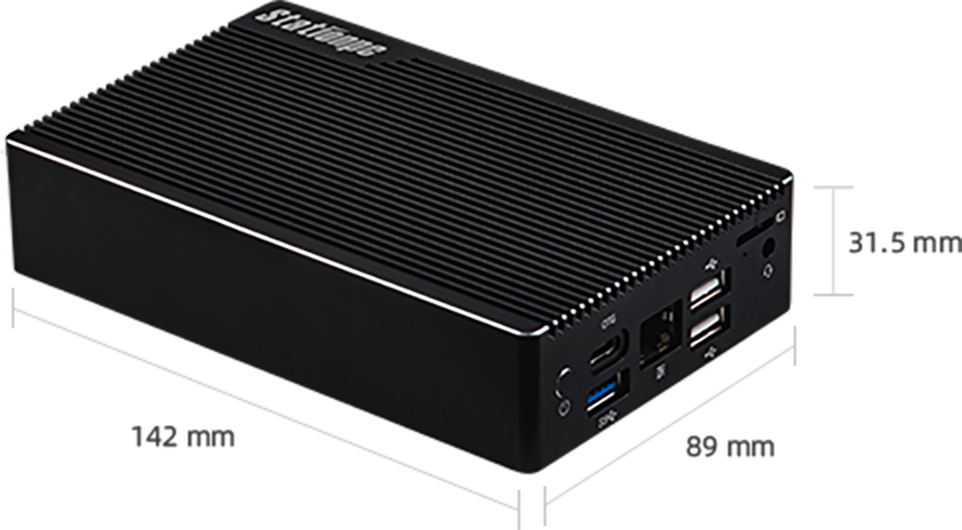

Station P2 Geek PC

Stationpc Station P2 (8GB+64GB)
Availability: Currently Shipping

Manuf (OEM/ODM): T-Chip ROC-RK3568-PC

FCC approval date: 07 July 2021
(Est.) release date: July 2021
(Est.) initial retail price (in USD): $239
UPC: 730243972894 (UPC DB, On eBay)
Country of manuf.: China

Amazon image

ASIN
B09936XM3P (, On Amazon, On CCC)
multiple revisions of this device, use caution

Type: single-board computer, Mini PC

FCC ID: H8N-AP6275S

Power: 12 VDC, 2 A
Connector type: barrel
Conn. measurements: 5.5 mm (OD), 2.1 mm (ID), 9.5 mm (LEN)

CPU1: Rockchip RK3568 (2 GHz, 4 cores)
FLA1: 64 GiB 65,536 MiB 68,719,476,736 B 536,870,912 Kib 67,108,864 KiB 524,288 Mib  (Kingston EMMC64G-TX29)
FLA2: 32 MiB33,554,432 B 262,144 Kib 32,768 KiB 256 Mib 0.0313 GiB  (Winbond W25Q256JWEIQ)
RAM1: 8 GiB 8,192 MiB 8,589,934,592 B 67,108,864 Kib 8,388,608 KiB 65,536 Mib  (SK Hynix H9HKNNNFBMMUDR)

Expansion IFs: USB 3.1, USB 2.0, SATA 3.0, M.2 (NGFF)
USB ports: 4
SATA ports: 2
Serial: yes, 3-pin header, 3.3V TTL, (1500000 8N1)

WI1 module: SparkLAN AP6275S
WI1 module IF: SDIO 3.0
WI1 chip1: Broadcom BCM43752
WI1 802dot11 protocols: abgn+ac+ax
WI1 MIMO config: 2x2:2
WI1 antenna connector: U.FL, RP-SMA

ETH chip1: Rockchip RK3568
ETH chip2: Realtek RTL8211F
ETH chip3: Realtek RTL8211F
LAN speed: 1GbE
LAN ports: 2

abgn+ac+ax

Additional chips
High-PSRR 500mA LDO;Powtech;PT5108;;1;
Power Management IC;Rockchip;RK809-5;;1;
PCI Express Clock;Diodes Inc;PI6C557-03;;1;
I2C RTC;Haoyu Microelectronics;HYM8563;;1;
USB 3.1 SuperSpeed 10 Gbps Switch;ON Semi;FUSB340;;1;
3V-5.5V RS232 Transceiver;Maxim Integrated;MAX3232;;1;
4-port USB 2.0 Hub Controller;Terminus Technology;FE1.1;;1;
5A Synchronous Step-Down DC-DC Converter;Tctek;TCS4525;;1;
2A 1MHz Synchronous Step-Down Regulator; Silergy;SY8089A;;1;
Programmable USB Type-C Controller w/PD;ON Semi;FUSB302;;1;
3A 500KHz Synchronous Step Down Regulator;Silergy;SY8113B;;1;
5.5V 2A Low Loss Power Distribution Switch;Silergy Corp;SY6280;;4;
3A 24V 500kHZ Synchronous Step-Down Converter;MPS;MP2315;;1;
Fixed 5V-8A Synchronous Buck Converter w/100mA LDO;MPS;NB679;;1;
Fixed 3.3V-8A Synchronous Buck Converter w/100mA LDO;MPS;NB680;;1;
3.3V Powered 10Mbps RS-485 Transceiver;Maxim Integrated;MAX3485;;1;
4-Line Uni-directional Transient Voltage Suppressor;Will Semiconductor;ESD5304D;;7;
4-Bit Bidirectional Voltage-Level Translator w/Auto Direction and ESD Protection;Union Semiconductor;UM3304;;1;

Stock bootloader: U-Boot

Stock FW OS: Linux 4.19.193 Android 11

TPFirmware supported: Ubuntu 20.04

Flags: WI-Fi 6, Bluetooth 5.0, Audio 3.5mm out, Micro SD Card slot, RTC w/ battery, RS485, RS232, external antennas, metal case, power switch

Default IP address: acquired via DHCP
the IP acquired via DHCP is used by 207 additional devices
of which 2 are Stationpc devices
Default login user: set at first login
Default login password: set on first login

802dot11 OUI: none specified

	FCC ID
SparkLAN AP6275S	H8N-AP6275S

	CPU1 brand	WI1 chip1 brand
Station M1 Geek PC	Rockchip	Realtek
Station M2 Geek PC	Rockchip	Broadcom
Station P2 Geek PC	Rockchip	Broadcom

For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Rockchip SoC's with specifications, see Rockchip.

Mini Geek PC

Product page

Hardware specification

CPU: Rockchip RK3568 @1.8GHz

Quad-Core ARM Cortex-A55

GPU: Mali-G52 2EE (OpenGL ES3.2)

VPU (with 4K VP9 and 4K 10-bit H265/H264 decoding)

NPU 0.8Tops@INT8

Memory: 8GB (SDRAM) LPDDR4
Storage: 16MB SPI NOR, 64GB eMMC,

TF card (max.128GB)/MMC card, SATA 3.0

Network: 2x Gigabit Ethernet port
PCIe: 1x M.2 (PCIe 2.0) for NVMe SSD (2242/2280, Key B)
USB: 1x USB 3.0, 1x USB Type-C (OTG), 2x USB 2.0 ports
GPIO: 1x 26-pin headers
Power Source: 12V/2A barrel
