ASUS RT-AC88U

From WikiDevi.Wi-Cat.RU
Jump to navigation Jump to search

ASUS RT-AC88U (5.01)
Availability: common

Manuf (OEM/ODM): Arcadyan WG911AA AC44 -ASU

FCC approval date: 29 May 2015
(Est.) release date: 30 October 2015
(Est.) initial retail price (in USD): $300
UPC: 889349030349 (UPC DB, On eBay)
EAN: 0889349030394 (UPC DB, On eBay)
Country of manuf.: China
Series: AC3100

Amazon image

ASIN
B016EWKQAQ (Flag of the United States.svg, On Amazon, On CCC)
On Newegg

Type: wireless router

FCC ID: MSQ-RTGW00
IC ID: 3568A-RTGW00

Power: 19 VDC, 2.37-3.42 A
Connector type: barrel

CPU1: Broadcom BCM4709C0 (1.4 GHz, 2 cores)
FLA1: 128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> (ESMT F59L1G81LA-25T)
RAM1: 512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (Nanya NT5CC256M16DP-DI × 2)

Expansion IFs: USB 3.0, USB 2.0
USB ports: 2
JTAG: yes, 5-pin header, unpopulated
Serial: yes, 4-pin header, unpopulated, internal, 3.3V TTL

WI1 chip1: Broadcom BCM4366
WI1 802dot11 protocols: an+ac
WI1 MIMO config: 4x4:4
WI1 antenna connector: U.FL, RP-SMA
WI2 chip1: Broadcom BCM4366
WI2 802dot11 protocols: bgn
WI2 MIMO config: 4x4:4
WI2 antenna connector: U.FL, RP-SMA

ETH chip1: Broadcom BCM4709C0
Switch: Realtek RTL8365MB
LAN speed: 1G
LAN ports: 8
WAN speed: 1G
WAN ports: 1

abgn+ac

Additional chips
2.4GHz RF Power Amplifier Module;Skyworks;SE2623L;;4;
2.4GHz SPDT switch w/ LNA;Skyworks;SKY85201-11;;4;
5GHz RF Power Amplifier Module;Skyworks;SKY85405;;4;
5GHz SPDT switch w/ LNA;Skyworks;SKY85605-11;;4;

Stock bootloader: CFE

Stock FW OS: Linux

TPFirmware supported: AsusWRT-Merlin • (Wiki | List), FreshTomato • (List | DLs), DD-WRT (beta)

Flags: MU-MIMO, NitroQAM, Link Aggregation, AiCloud, AiProtection, ASUS Router App, AiMesh, DFS (master), VHT80+80, DFS (master), DFS (slave)

Default SSID: ASUS (97 addl. devices)
, ASUS_5G-1 (3 addl. devices)
, ASUS_5G-2 (2 addl. devices)
Default IP address: 192.168.1.1
the IP 192.168.1.1 is used by 1304 additional devices
of which 167 are ASUS devices
Default login user: admin
Default login password: admin
admin:admin credentials used by 1324 additional devices
of which 198 are ASUS devices

802dot11 OUI: AC:9E:17 (10 E, 10 W)
Ethernet OUI: AC:9E:17 (10 E, 10 W)

 FCC ID
ASUS RT-AC3100MSQ-RTGW00

For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.

AC3100 Dual-Band Wi-Fi Gigabit Router

Product page  • Support page  • Downloads
• 2167 Mbps max PHY rate per each 80MHz wide 5GHz channel,
• 1000 Mbps max. PHY rate for the 40MHz wide 2.4GHz channel = 3100 Mbps class
See also: ASUS RT-AC3100 and Arcadyan

"RT-AC88U REV 5.01" and "1517" is silkscreened on the board.

FCC certification cites "three model numbers which are identical to each other in all aspects except for the following [characteristics]:"

* per NCC DFS Test Report No. TZ531828-15
Model No. LAN Ports Heat sink color
RT-AC88U 8xRJ45 GbE Silver/Red
RT-AC88R 8xRJ45 GbE Silver/Red
RT-AC3100 4xRJ45 GbE Silver/Black

DFS certification and VHT80+80 support were added with a C2PC request on 3/6/2019. Actual support would probably need to come from a firmware update. The first page of the DFS Test Report lists two manufacturers: Askey and Compal.

Web GUI Redirect URL: http://router.asus.com/

Features

  • Broadcom 1.4GHz Dual-core ARM processor improves USB and WAN/LAN speed
  • 802.11ac dual-band Wi-Fi router boosts speeds up to 3167Mbps for low-latency online gaming, smooth 4K UHD video playback and fast file-sharing
  • Broadcom NitroQAM technology boosts 5GHz (2167Mbps) and 2.4GHz (1Gbps)
  • 4x4 antenna design with AiRadar universal beamforming for improved Wi-Fi range
  • MU-MIMO radio technology can connect multiple MU-MIMO-compatible clients at each device’s maximum speed simultaneously
  • ASUS Router App for network control from mobile devices
  • Exclusive built-in game accelerator from WTFast for supported multi-player online games
  • AiProtection with Trend Micro for network security, plus parental controls and privacy protection
  • 8 Gigabit Ethernet LAN ports, Link Aggregation up to 2Gbps

Specifications

  • CPU: Broadcom BCM4709C0(KFEBG) Dual-Core @ 1.4GHz (ARM Cortex A9)
  • Flash (NAND): 1x ESMT F59L1G81LA-25T 128MB
  • RAM: 512MB DDR3
2x ESMT M15F2G16128A-BDB 256MB DDR3 (Mod)
  • Wi-Fi: 4x4 MU-MIMO, NitroQAM™ (1024-QAM), 2.4Ghz/5GHz Dual Band (802.11abgn/ac)
  • Wireless radios: 2x Broadcom BCM4366 SoC 4T4R (PCPerspective)
    • Power amplifiers: 4x Skyworks SE2623L, 33dB Gain (2.4GHz) / 4x Skyworks SKY85405, 31dB Gain (5GHz)
    • Switch: 4x Skyworks SKY85201-11 SPDT (2.4GHz) / 4x Skyworks SKY85605-11 SPDT (5GHz)
    • Low-Noise Amplifier: 4x NXP (SiGe) BGU7224 (2.4GHz),
4x Macom MAAL-011078 (5GHz)
  • Antennae: 4x 5dBi dual band, detachable via RP-SMA connections
  • Switch: Realtek RTL8365MB (4x GbE + RGMII)
  • Ports:
    • WAN: 1x GbE (DHCP client, PPPoE w/ MPPE support, PPTP, L2TP or Static IP)
    • LAN: 8x GbE
  • USB: 1x USB 3.0, 1x USB 2.0
  • Applications: ASUSWRT, AiCloud, AiProtection
  • Services:
    • Dual-stack IPv4/IPv6
    • DHCP server
    • DLNA server
    • VPN server
    • Download Master
    • Guest Network (max. 3 per band)
    • High-Power mode

Power supply

ASUS Technical Specifications

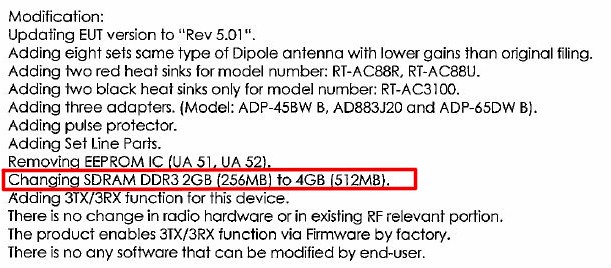

FCC certification lists five compliant power adapter models, stating "the [choice of] power adapter does not affect the results of RF tests." (hardware rev 5.01 modifications).

* per NCC DFS Test Report No. TZ531828-15
Part # AC Input DC Output
AD883J20 100V~240V @ 50~60Hz, 1.0A 19V / 2.37A
AD2066320 100V~240V @ 50~60Hz, 1.0A 19V / 2.37A
ADP-45BW B 100V~240V @ 50~60Hz, 1.2A 19V / 2.37A
ADP-45BW Y 100V~240V @ 50~60Hz, 1.2A 19V / 2.37A
ADP-65BW B 100V~240V @ 50~60Hz, 1.5A 19V / 3.42A
ADP-65GD B 100V~240V @ 50~60Hz, 1.5A 19V / 3.42A
